Pro-Clean enhanced anti-crossed the filter

First heavy protection - pre-filter
Filter out impurities, rust, sediment, red worms
The first protection of the pre-filter water are as a family house, is the bane of water secondary pollution applied to the centralized treatment of indoor water pipes.

PRO-CLEAN pre-filter "concern" rust problem
Long-distance water pipelines and faucet corrosion will bring rust, precision filter pore PRO-CLEAN pre-filter can effectively intercept the rust.

PRO-CLEAN pre-filter "concern" the problem of microbial
Secondary water supply of roof water tanks lead to microbial growth, precision filter pore PRO-CLEAN pre-filter can effectively intercept bloodworm visible microbes.

PRO-CLEAN pre-filter "concern" the problem of secondary pollution
Filtering media is non-disposable, its core technology embodied whether each wash thoroughly, to avoid the filter itself become a secondary source of pollution, PRO-CLEAN pre-filter with enhanced flushing function, which can effectively remove the water two the pollution problems at the same time.

Med pros and cons of flushing pre-filter is the Moen Da's newly developed high-tech products, with a number of leading-edge technology, the product is flush and water purification to enhanced backwash two sewage, filter cleaning is more thorough, and the process of uninterrupted water supply, large capacity, extensive application.

Enhanced dual flush mode
The tap water is flushing, backwash water purification, multiple sewage mode random switching, enhanced water structure design provide a powerful wash water, rinse more thoroughly, the permeability of the filter pore.

Operate independently of the dual-network system
The unique filter design, filter, water purification, backwash the independent operation of the dual-network system, users put rinse maintain the filter which does not affect the clean water supply.

Aerospace-level transparent cover
Transparent cover is facilitate to the user to observe the impurities intercept and backwash process and effect, aerospace grade engineering plastic housing can withstand water pressure up to 16bar, better than the American NSF check standard.

Gradually tighten the multi-filter structure
Filter micropore  are gradually tighten the unique filter structure from the outside which can achieve the most effective impurity blocking effect of pressure loss lower, clean water flux, rinse better.

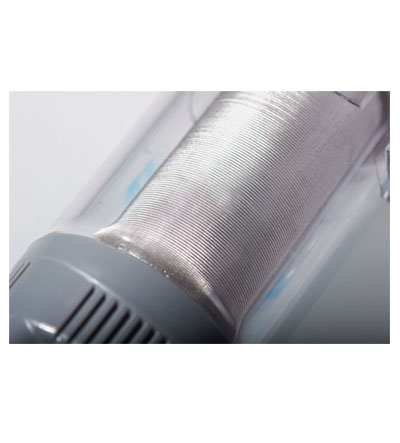

Health and stainless steel strainer
Sanitary stainless steel filter has high corrosion resistance, it is able to adapt to the more complex water environment and to avoid corrosion, pressure resistance, and not deformed.

Cleaning time memo function
The equipment used the filter cleaning for a period of time , and adjustable time memory dial to help the user record for each cleaning time marked by the month.


Moen Da pre-filter MU-H-S5 used for domestic water and drinking water, primary filter. Effective protection of water mains and water purification equipment, to avoid failure and corrosion caused by rust, debris, sediment and other particulate pollutants impurities. Fully filter out large particles of rust, sediment and other impurities, for your family hold up a security umbrella at the same time, also it is to avoid the dead ends of water purification equipment, filter pore size too small to bring health.
Model              MU-H-the S5
Name               enhanced anti-crossed the filter
Specifications mm  313x86x164
Interface size     R3 / 4 "
                   R1 "
Flow               T / H 5
Filter material    grade 316 stainless steel of Health
Filter pore size   μm 40-50
                      70-90
Filter structure   the dual-network / getting-tight
Rinse mode         red, water purification recoil
Inlet temperature °C    5-40
Suitable pressure Mpa    0.1-0.8
Food-grade stainless steel filter
* Filter, the recoil dual system operate independently
* Filtering accuracy of 50 microns
* Regular washing, clean water backwash dual function
* Per hour, five tons over the water
* Memory function of cleaning time
一.A simple but not simple design the greatest possible play use efficiency of stainless steel filter, cleaning are more thorough
二. Translucent design, intuitive so that you understand the filtering effect, it is easy to grasp the backwash frequency.

Maintenance
This product is used for home water filtration, pre-filter is usually installed in the total household water side (meter).And the main role is to remove the precipitated impurities generated by the pipeline and rust, sediment, red worms, debris and other largeparticulate impurities, and to avoid the human body and skin were infected injury; and downstream pipelines, water purifiers, water heaters, washing machines, high-end faucet, shower (shower nozzle) pipe wall and so on play a positive role in the protection.The following installation instructions common PPR pipe connection for the installation instance of the connection, such as other materials, according to the actual processing.

It is need to consider before installation of sewage, elected to the land drain sewage close to the wall installation, non-leakage of sewage is required to consider the space to place the Sheng sewage container.For the convenience of the sewage, after installation the outfall must be vertical down. Specific installation steps are as follows:
1、It is need to prepare  pipe wrench and other tools related to joints and sealing materials and other accessories.
2.Master valve, turn off the water, to facilitate the maintenance of pre-filter, inlet valve in the pre-filter before installing a pre-filter, and then installed in the selected position to the pre-filter in and outwater direction is not hold against.
3. After installation, open water master valve, double check for any leakage of each interface, and processing.At this point, the pre-filter installed, ready to use.


Tips:
1) The professional installer need to check the product components in advance before installation is complete and filter machine is normal
2) The filter need to be as close as possible to drain installation to facilitate the outfall of the filter toward the floor drain
3) The pre-filter should not be installed outdoors, outdoor installation, please do insulation from light protection. As far as possible from ultraviolet light, heat, fuel and chemicals
4) In winding the raw material with the need for full uniform winding
5) Use a wrench to tighten the hex nuts need to ensure that other components with the rotation
6) After the installation is complete, carefully observe all joints for leaks or leakages
How to use:
After the installation is complete, open water master valve, the filter began to work after a period of actual filter, the user can clearly through the transparent tube to see the filter off impurities, this time, if the accumulation of impurities affect the home waterequipment out of water and water pressure, you can filter filter cleaning.
Packing details:
The front filter X1
Manual x1,
Special wrench x1,
Installation Accessory Kit x1,
Qualified card x1
Warranty card x1

Tips:
Large particulate impurities
Conveyance of water supply pipe network has long distance, pipeline fell into disrepair and damage cause secondary pollution of tap water, so that the terminal water and finished water quality significantly different.
Chlorine
China's water treatment plants basically use the traditional chlorination methods, this method is often chlorine retained in the water may cause cancer, and organic reaction.
Bacteria, spores cyst
Roof tanks or ground pool can not be cleaned in time because of the poor day-to-day management ,it may result  the large population of bacteria, direct harm to people's health.
Heavy metals, mercury
Industrial emissions and automobile exhaust lead to water, mercury, arsenic, lead and heavy metal elements exceeded, lead elements can easily lead to lead poisoning in children, affecting intellectual development.
All-items VOC
VOC stands for Volatile Organic Chemicals, which means volatile organic compounds, commonly used combination of chlorination in tap water and organic compounds in water generates chloroform and other carcinogens.
